GetConfig - Configuration Management

Introduction

GetConfig is a centralized configuration management system that enables you to define, version, and distribute runtime configuration to your device fleet. It supports key-value configuration groups, semantic versioning, sensitive value storage (via Vault), ConfigMap inheritance, and automatic sync to agents.

Key Concepts

Config Projects

A Config Project is a project of type CONFIG that holds configuration intended for devices. Config projects are created automatically when a new device performs its first discovery — they do not need to be created manually from the Dashboard. Each config project contains revisions, and each revision contains one or more configuration groups.

Configuration Groups

A Configuration Group is a named collection of key-value pairs written in YAML. Groups allow you to organize configuration logically (e.g., network, logging, application).

Each group has:

• Name: Unique identifier within the revision
• Display Name: Human-readable label
• YAML Content: The actual key-value configuration
• Sensitive Keys: Keys whose values are stored securely in Vault
• Position: Ordering within the revision

Revisions

Revisions provide versioning for your configuration. Each revision goes through a lifecycle:

1. DRAFT — Editable state; only one draft can exist at a time
2. ACTIVE — The currently deployed revision; applied to devices
3. ARCHIVED — Previously active revisions kept for history

When a draft is applied, it becomes ACTIVE, the previous active revision becomes ARCHIVED, and a semantic version is automatically computed.

ConfigMaps

A ConfigMap is a special project type that provides shared configuration across multiple config projects. ConfigMaps can be associated with:

• Specific device types
• Specific device IDs

When a ConfigMap revision is applied, all linked device configs are automatically refreshed.

Local Overrides

Agents can apply local overrides to specific configuration keys. These overrides take precedence over server-distributed values, allowing device-specific adjustments without modifying the central configuration.

Architecture Overview

Managing Configurations

Config Project Creation

Config projects are created automatically when a new device performs its first discovery against the server. There is no need to manually create them from the Dashboard. Once a device completes discovery, its corresponding config project appears in the Devices list, ready for you to manage its configuration.

Working with Revisions

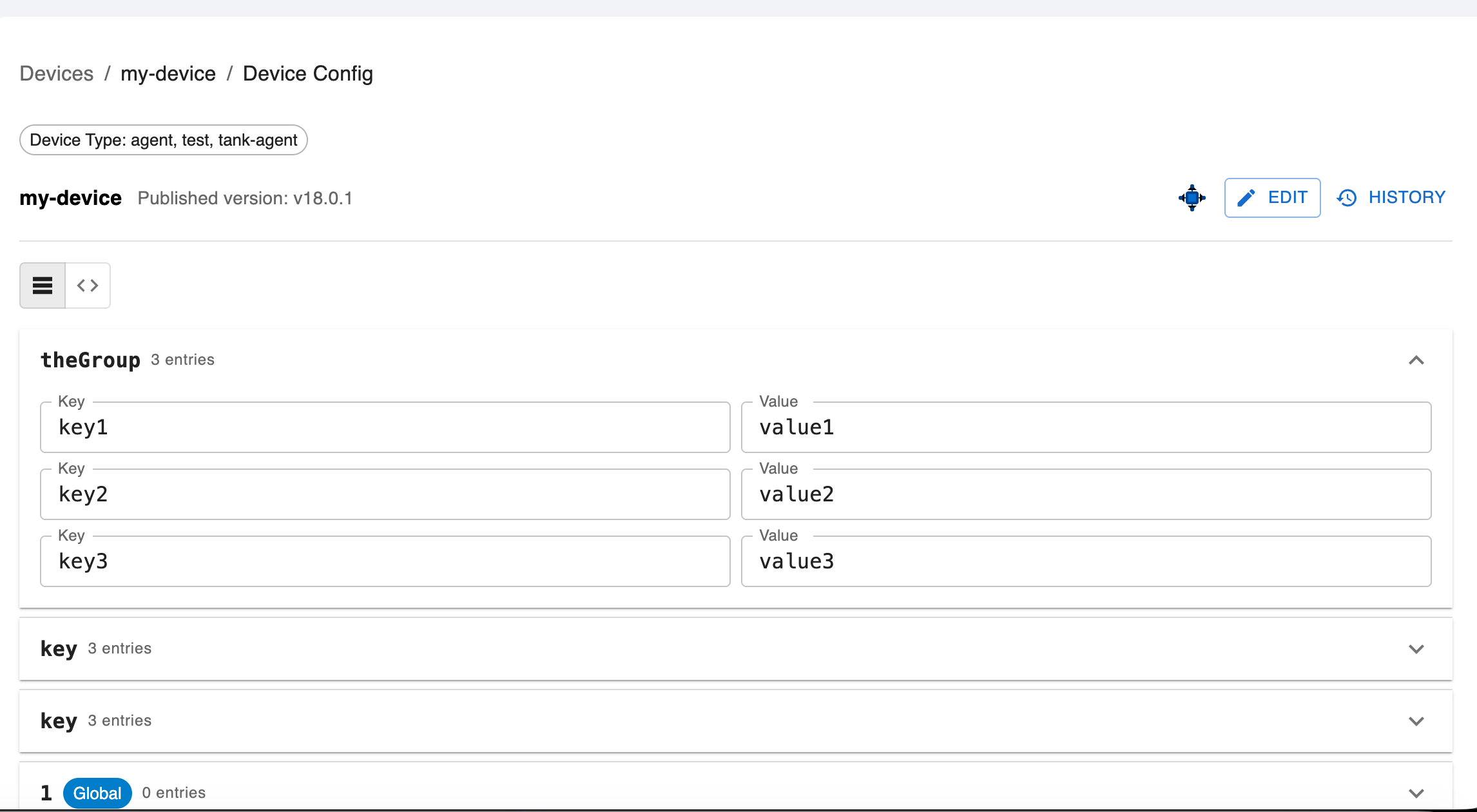

Creating a Draft

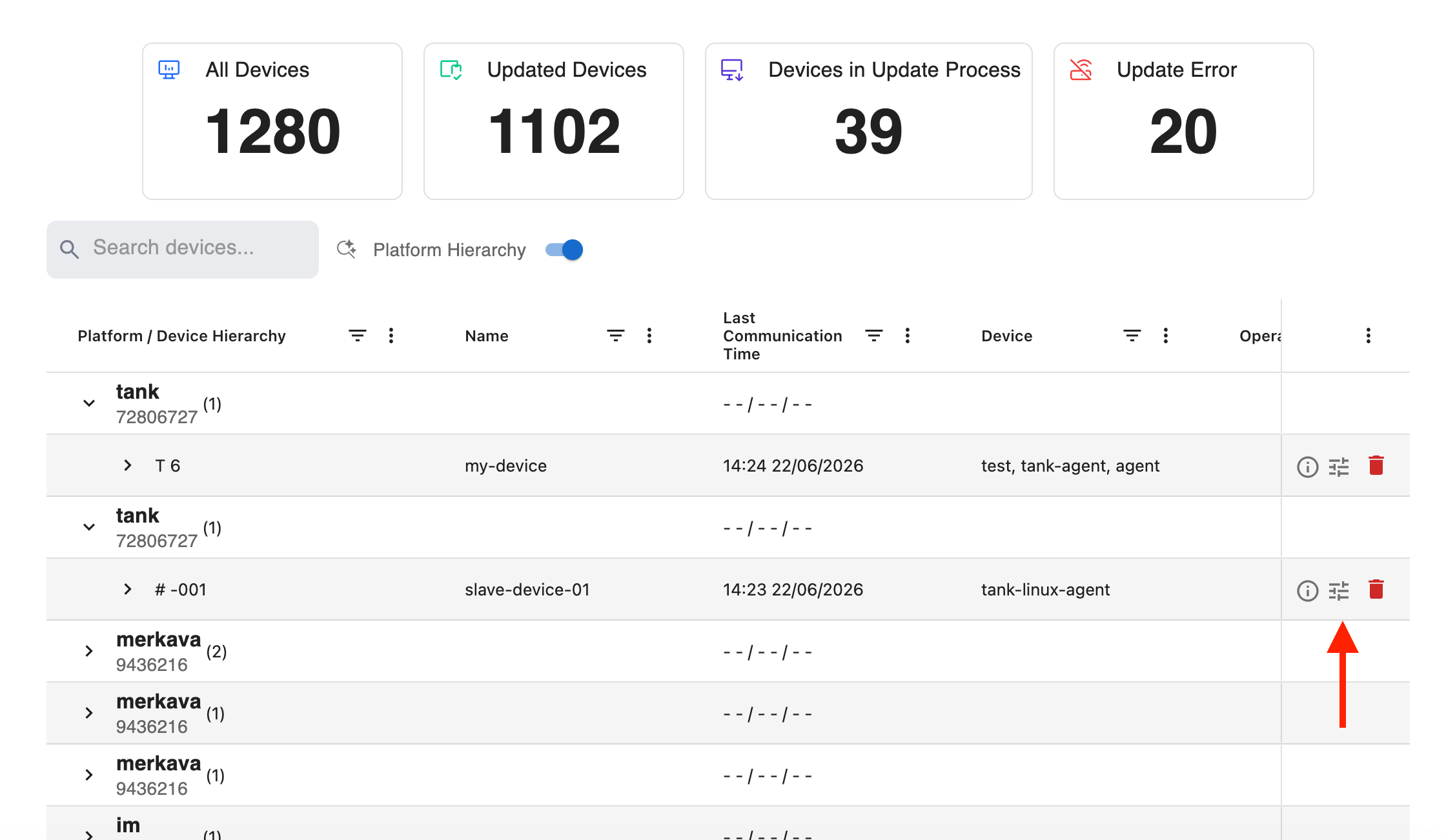

1. Open the device config page
2. Click Edit to start a new revision

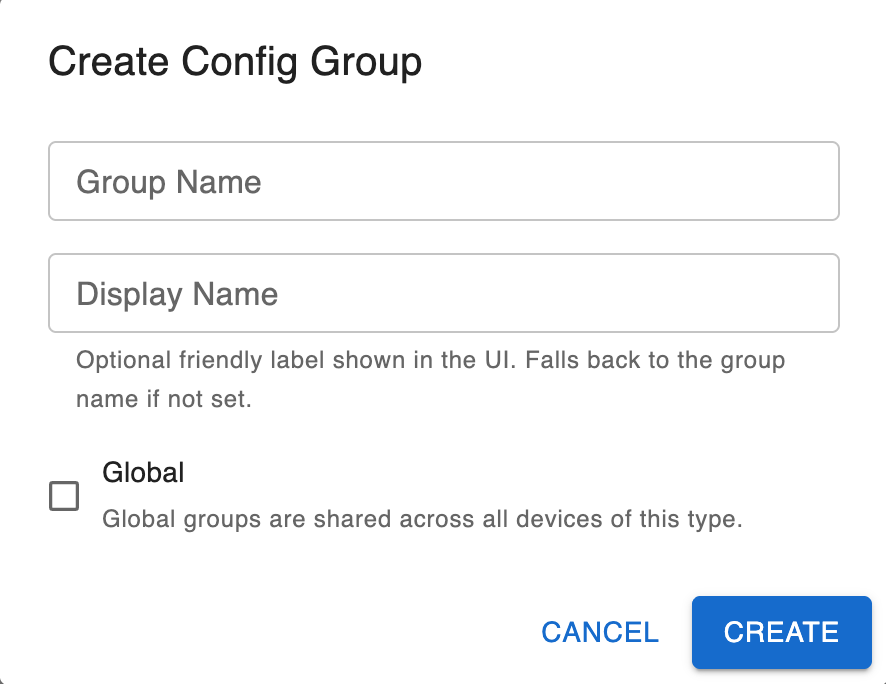

Adding Configuration Groups

1. In the active draft, click Add Group
2. Provide a Name and Display Name
3. Enter your configuration in key value/ or YAML format
4. Mark any sensitive keys that should be stored in Vault
5. Click Save

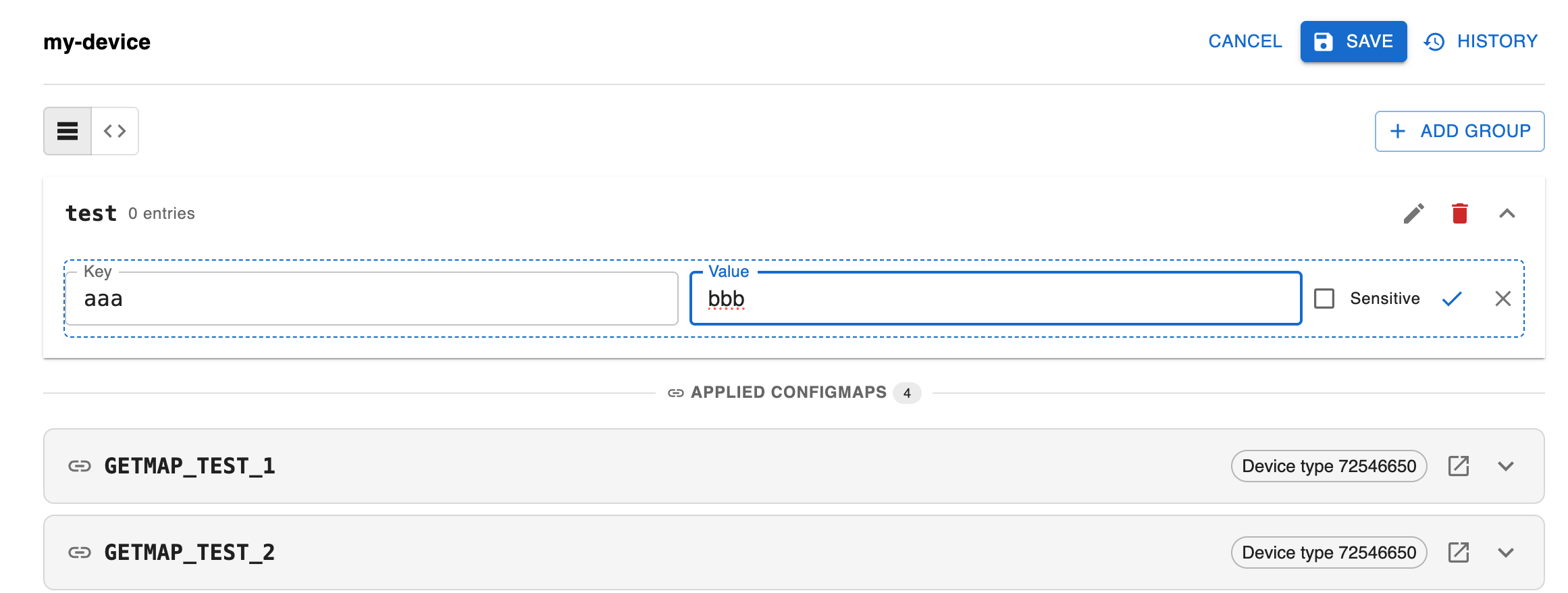

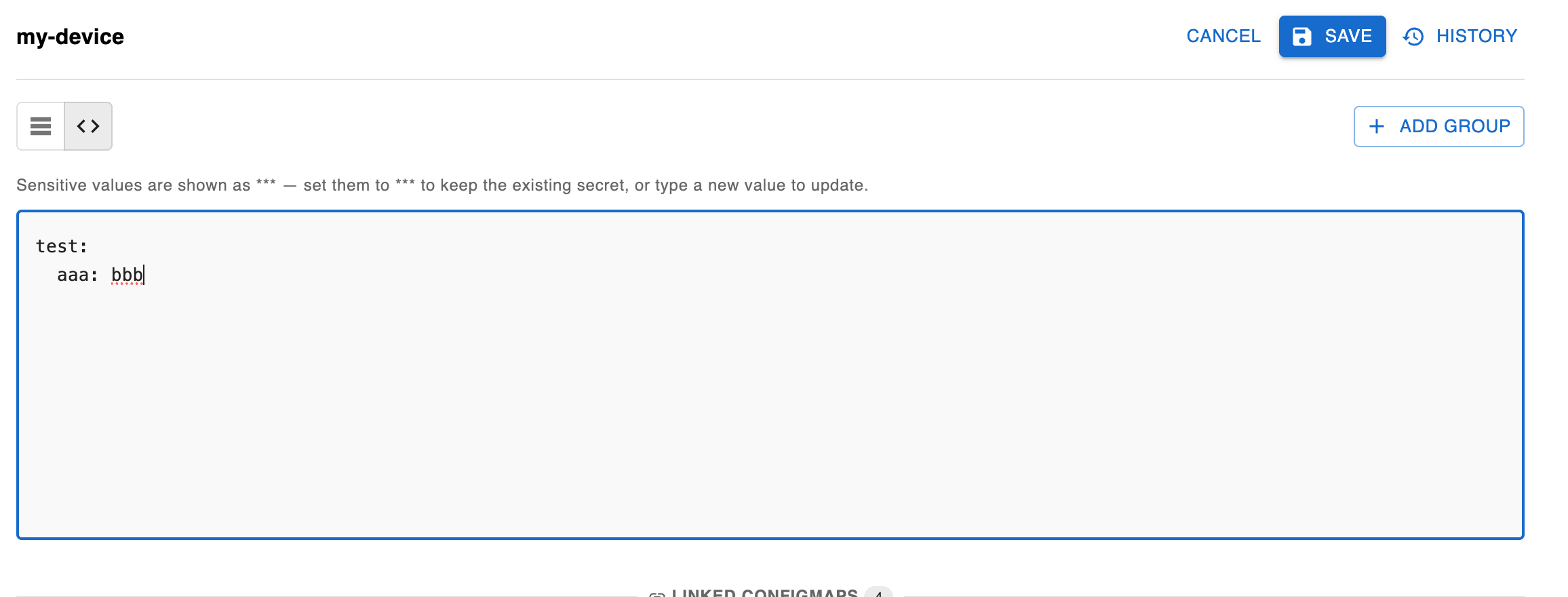

Editing Groups

1. Select an existing group from the list
2. Modify the content or group properties
3. Click Save

Applying a Revision

1. Review all groups in the draft
2. Click Save

caution

Applying a revision immediately makes it available to all targeted devices on their next sync. Ensure you have tested the configuration before applying.

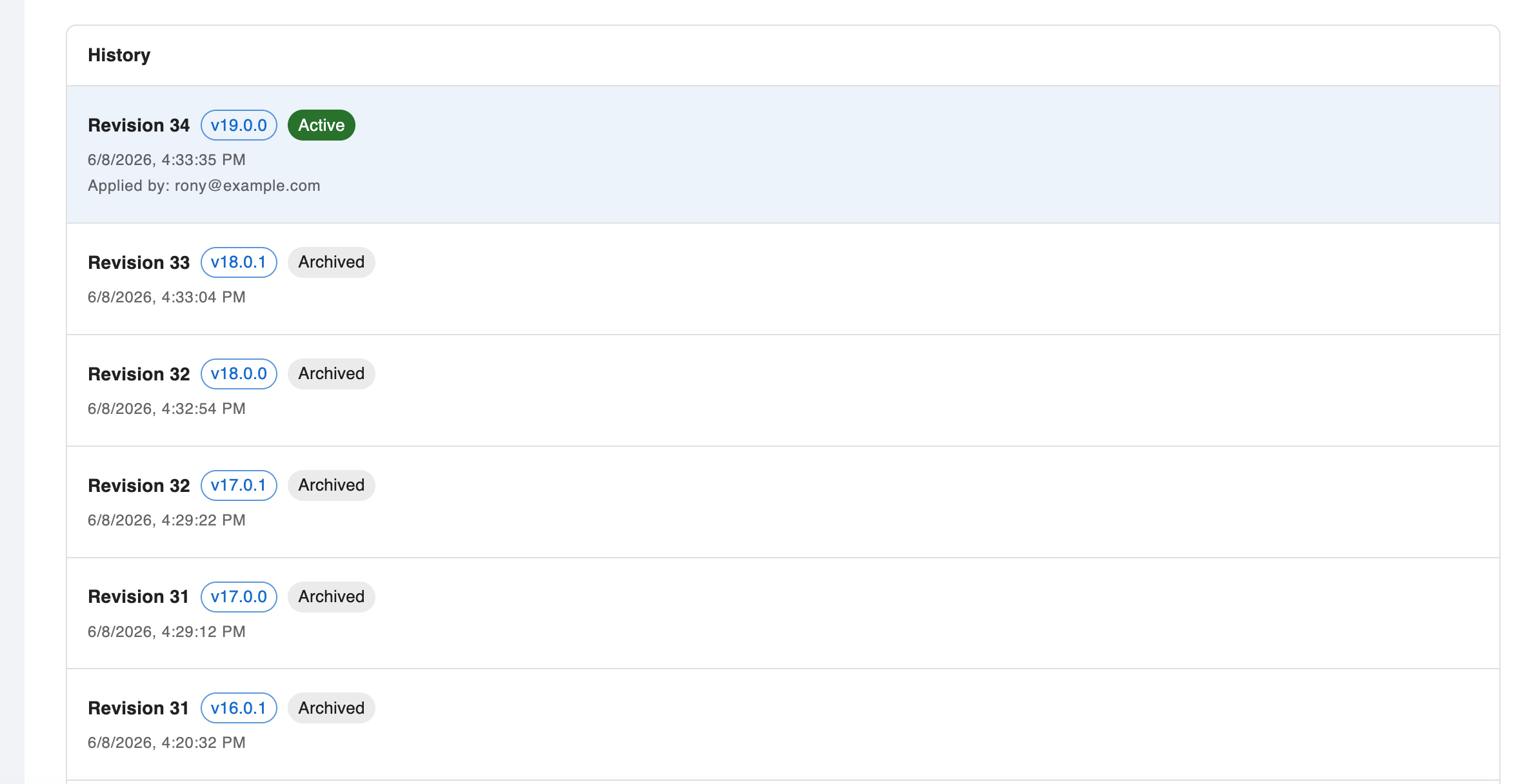

Viewing Revision History

The history shows all past revisions with their version numbers, status, and timestamps.

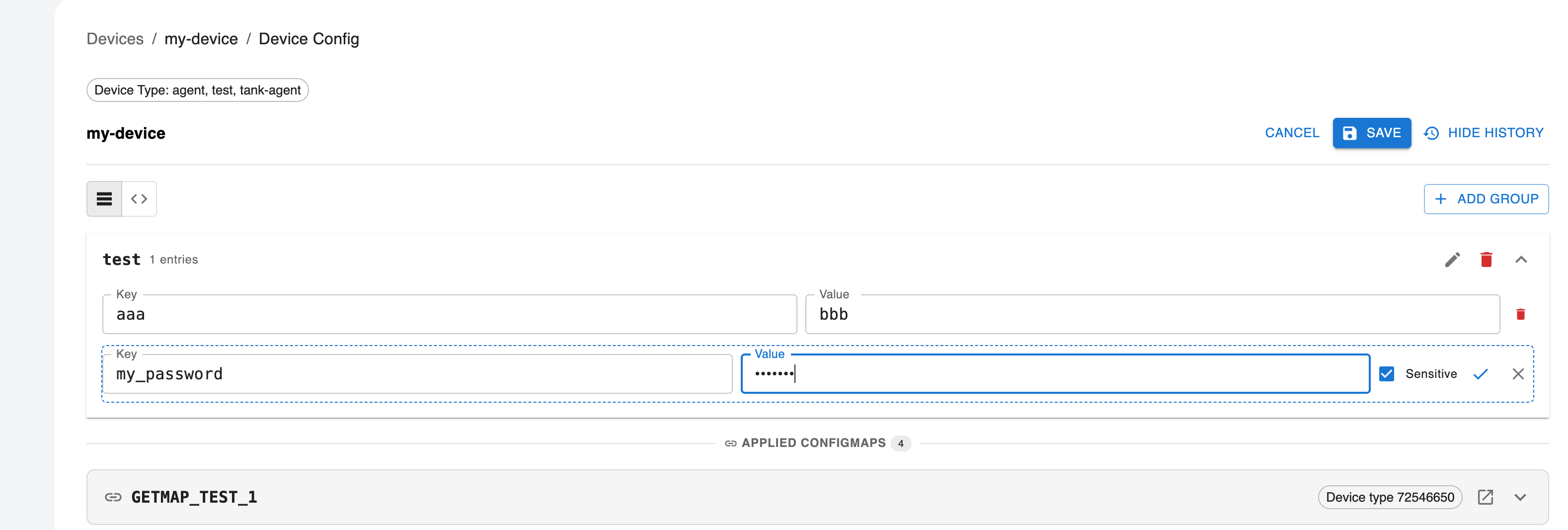

Managing Sensitive Values

Configuration values marked as sensitive are stored in HashiCorp Vault and are never exposed in plaintext through the API or UI. They appear masked as *** in the interface.

To mark a key as sensitive:

1. Edit the configuration group
2. Select the key(s) to mark as sensitive
3. Save the group

ConfigMap Management

ConfigMaps allow you to define shared configuration that can be inherited by multiple config projects.

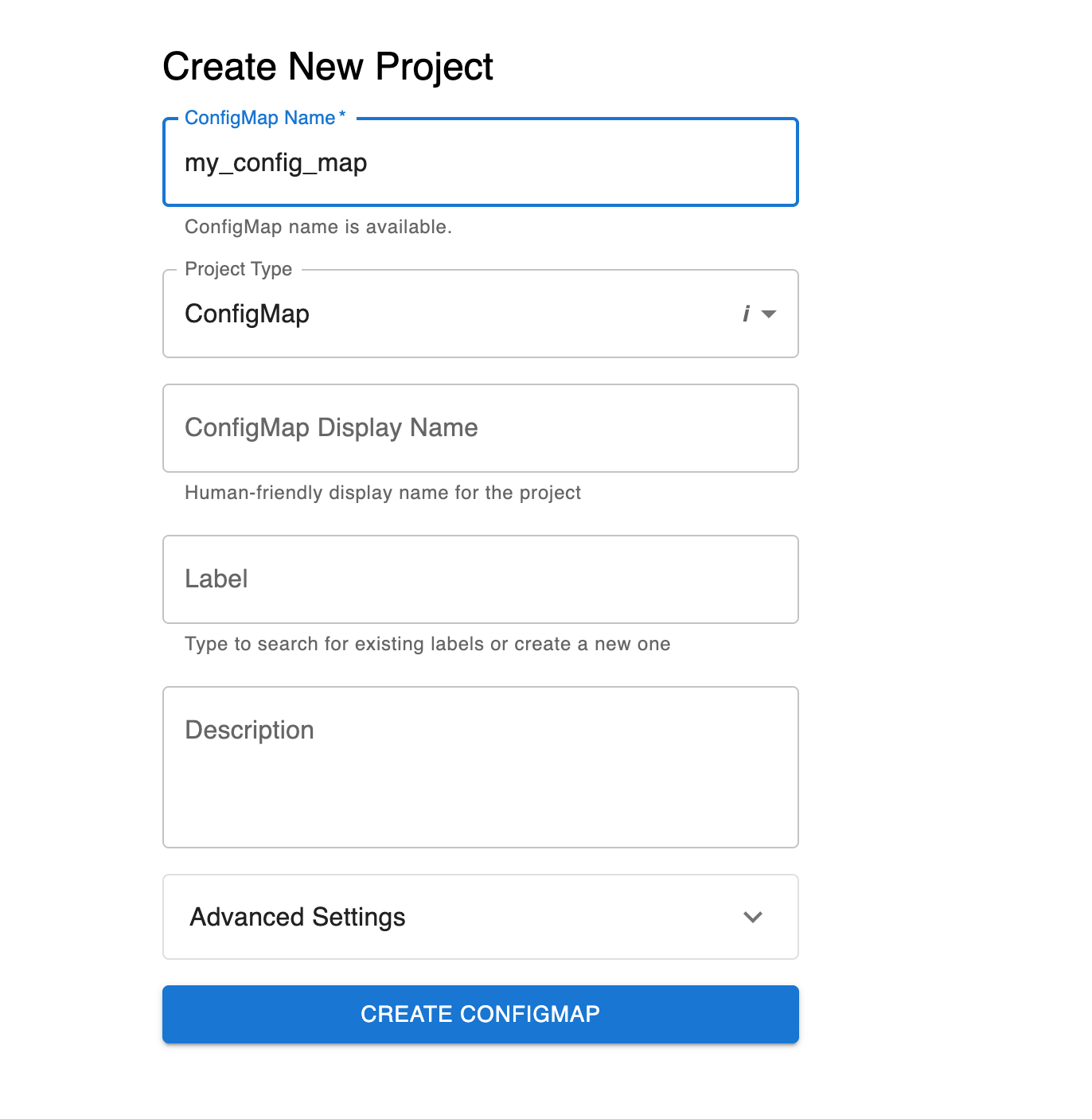

Creating a ConfigMap Project

1. Navigate to Projects > Create Project
2. Select project type CONFIG_MAP
3. Define your shared configuration groups

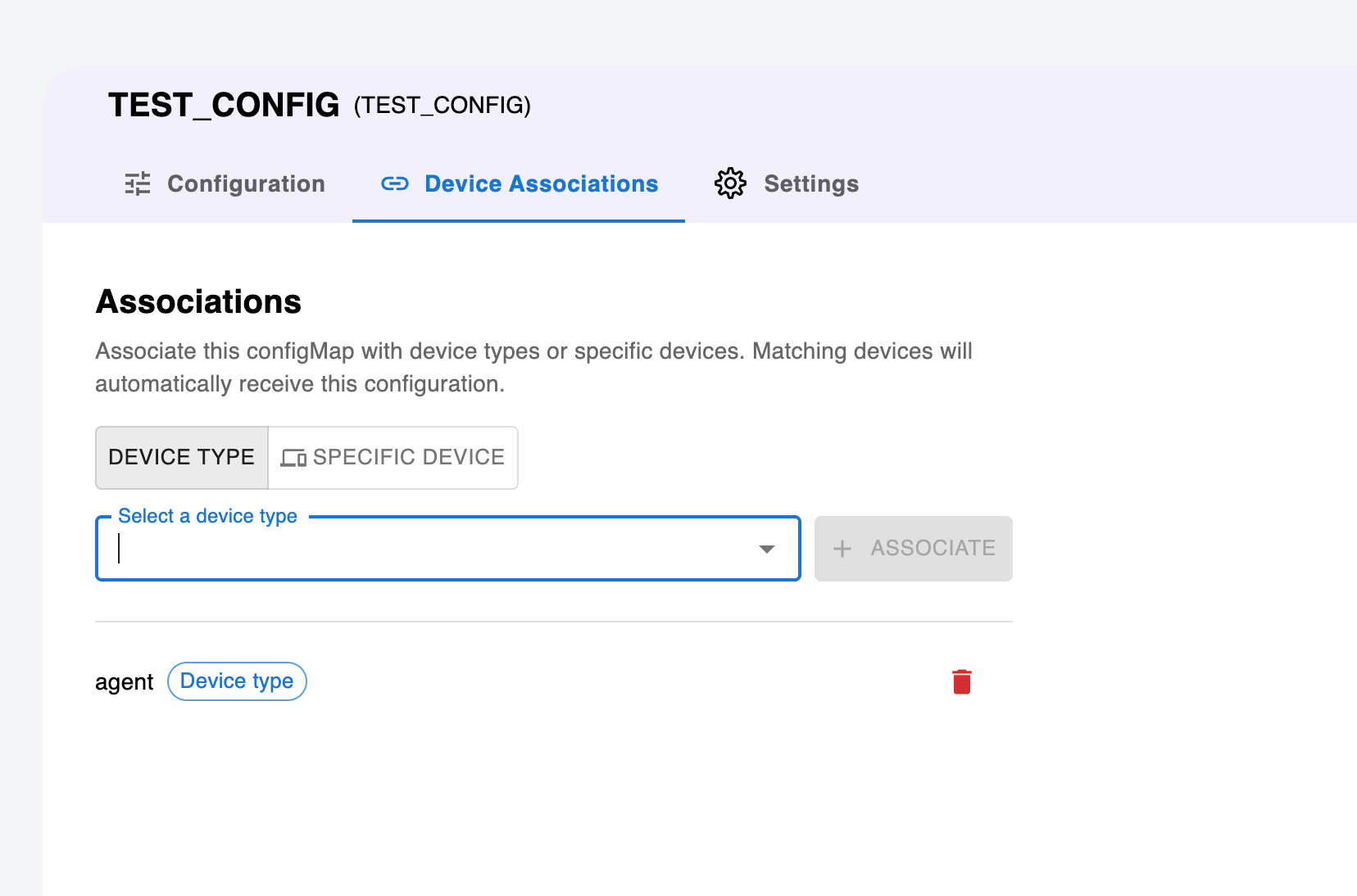

Associating ConfigMaps

1. Open your ConfigMap project
2. Navigate to Associations
3. Link the ConfigMap to specific device types or device IDs
4. Select which Config projects should inherit this ConfigMap

ConfigMap Cascade Behavior

When a ConfigMap revision is applied:

• All linked Config projects are automatically refreshed
• Device configs are reassembled with the updated ConfigMap values
• Agents receive the updated configuration on their next sync

Device Configuration View

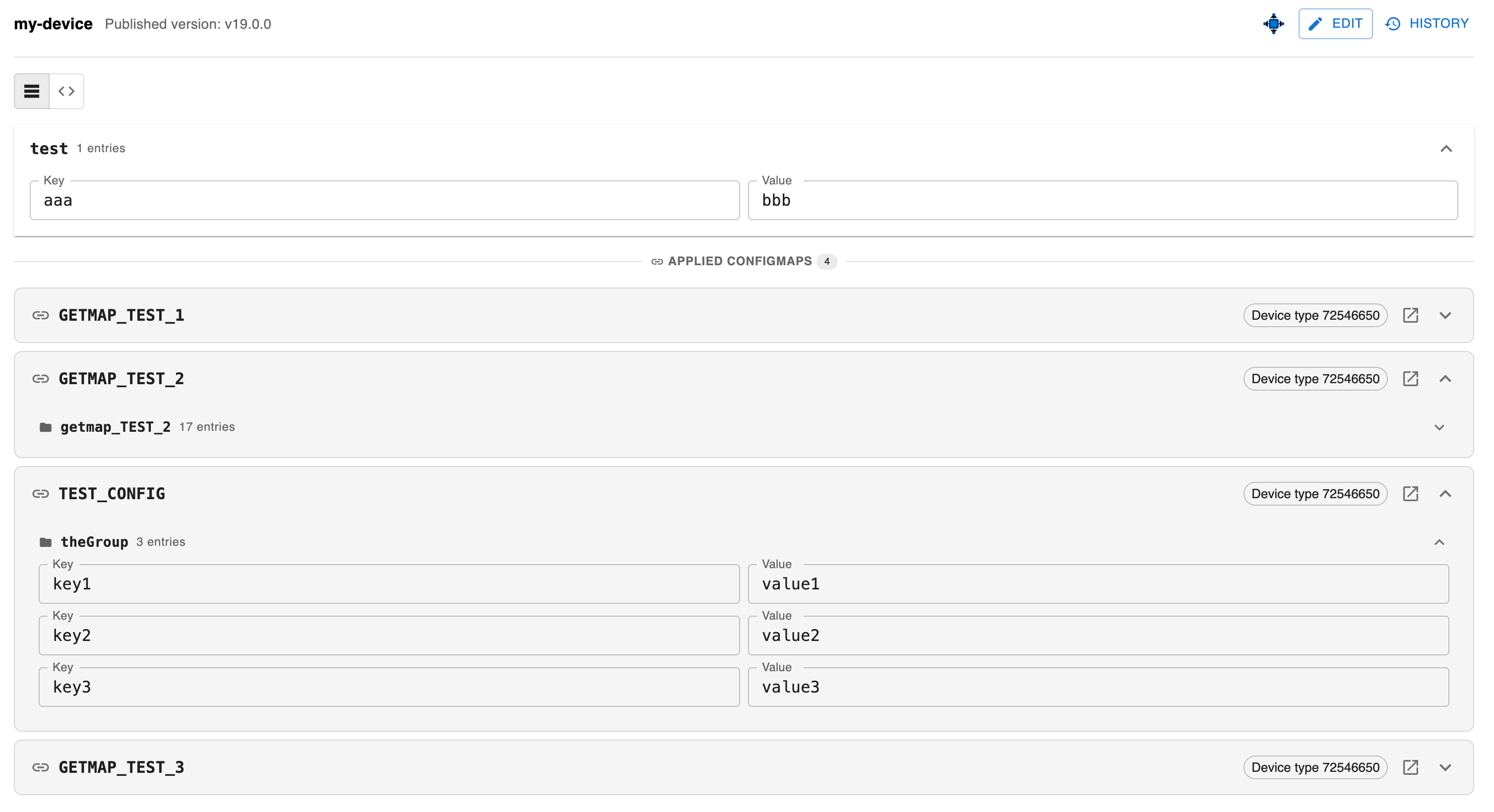

Assembled Device Config

The Dashboard provides a view of the final assembled configuration for each device, showing the merged result of:

• Device-specific config groups
• Inherited ConfigMap groups
• Global groups

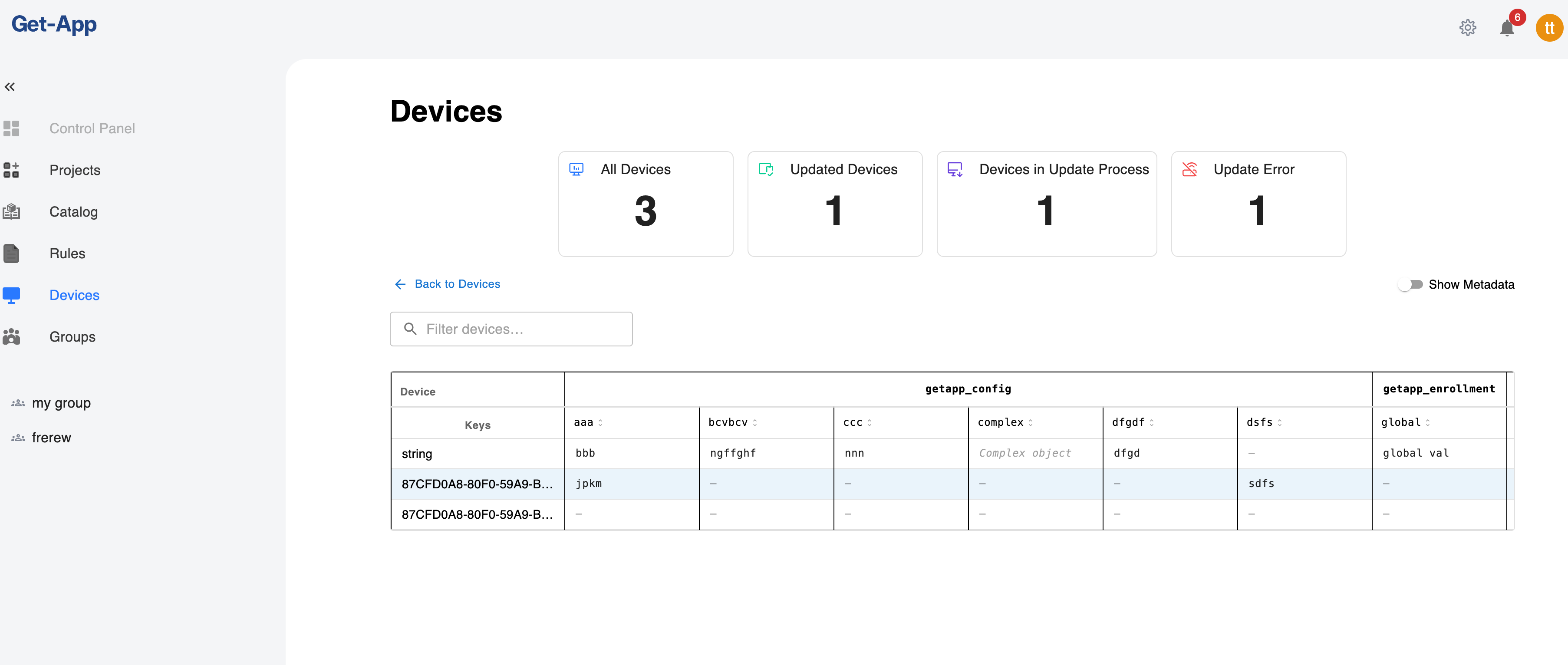

Table View — Multi-Device Config Editing

The Dashboard provides a Table View that lets you view and edit configuration across multiple devices at once. Switch to it from the Devices list by changing the view mode to Config.

The table displays a matrix of devices (rows) × config keys (columns), grouped under their config group headers. Click any editable cell to modify its value inline — ConfigMap-inherited groups are read-only. Modified cells are highlighted, and clicking Save applies all pending changes across all affected devices at once.

Server API Reference

Config Endpoints

Method	Endpoint	Description
GET	/api/v1/get_config/:id/config/revisions	List all revisions
GET	/api/v1/get_config/:id/config/revisions/:revisionId	Get specific revision
POST	/api/v1/get_config/:id/config/revisions/draft	Create new draft
DELETE	/api/v1/get_config/:id/config/revisions/draft	Delete current draft
POST	/api/v1/get_config/:id/config/revisions/apply	Apply draft (DRAFT → ACTIVE)
PUT	/api/v1/get_config/:id/config/groups	Create/update group in draft
DELETE	/api/v1/get_config/:id/config/groups	Delete group from draft
GET	/api/v1/get_config/:id/config/device-config/:deviceId/version/:semver	Get assembled device config

ConfigMap Endpoints

Method	Endpoint	Description
GET	/api/v1/get_config/:id/config-map/associations	List associations
POST	/api/v1/get_config/:id/config-map/associations	Add associations
DELETE	/api/v1/get_config/:id/config-map/associations/:associationId	Remove association
GET	/api/v1/get_config/:id/config/config-maps	List ConfigMaps for a project

Agent-Side Configuration

On the device, the agent exposes configuration to local applications through its local API:

Endpoint	Description
GET /api/v2/config/file	Complete device config (all groups)
GET /api/v2/config/groups	List all group names
GET /api/v2/config/group/{name}	Get all key-values for a group
GET /api/v2/config/group/{name}/env/{key}	Get a single value
GET /api/v2/config/overrides	View all local overrides
PUT /api/v2/config/overrides/{group}/{key}	Set a local override
DELETE /api/v2/config/overrides/{group}/{key}	Remove a local override

Local Overrides

Agents can override individual configuration values locally without affecting the server-side configuration. Overrides are managed via the agent's local API:

Method	Endpoint	Description
GET	/api/v2/config/overrides	View all local overrides
GET	/api/v2/config/overrides/{group}	View overrides for a specific group
PUT	/api/v2/config/overrides/{group}/{key}	Set a local override
DELETE	/api/v2/config/overrides/{group}/{key}	Remove a local override

info

Local overrides persist across config syncs. They take precedence over server-distributed values until explicitly removed.

The getapp_config Reserved Group

The getapp_config group is a reserved configuration group that directly controls the behavior of the GetApp agent itself. Unlike regular groups that are simply exposed via the local API, values in getapp_config are automatically merged into the agent's own config.yaml on every sync.

This provides a powerful mechanism for remotely managing agent settings across your device fleet from the Dashboard, without needing to manually update each device.

How It Works

1. The server always includes getapp_config as a default group in every config project
2. When the agent syncs its configuration, it extracts the getapp_config group
3. Each key-value pair is validated against expected types
4. Valid values are deep-merged into the agent's config.yaml
5. Affected subsystems are hot-reloaded — no agent restart required

Merge Behavior

• Deep recursive merge — nested settings are merged at the leaf level
• Only provided keys are affected — keys absent from getapp_config are left untouched in the local config
• Type safety — known keys are type-checked; mismatched types are rejected and logged as errors
• Unknown keys are accepted and passed through without type validation

local_config_priority Flag

The agent has a special device.local_config_priority setting (default: false) that controls merge precedence:

local_config_priority	Behavior
false (default)	Server wins — getapp_config values overwrite local values
true	Local wins — only keys absent locally are written from the server

caution

The device.local_config_priority flag itself is protected — it cannot be overwritten remotely via getapp_config. It can only be changed directly on the device.

Available Settings

The following agent settings can be controlled remotely via the getapp_config group:

Device Settings

Key	Type	Description
device.device_id	String	Device identifier
device.device_type_token	Array	Device type tags
device.platform	String	Platform type
device.platform_id	String	Platform identifier
device.meta_data.name	String	Device display name
device.meta_data.misc	String	Misc metadata

Network Settings

Key	Type	Description
network.getapp_server_urls	Array	Server URLs
network.availability_url	String	Network availability check URL
network.net_tcp_stream_timeout_sec	Number	TCP stream timeout (seconds)

Discovery Settings

Key	Type	Description
discovery.periodic_interval_min	Number	Discovery interval (minutes)
discovery.stale_after_mins	Number	Discovery staleness threshold (minutes)
discovery.component_last_run	String	Last component discovery timestamp

Delivery Settings

Key	Type	Description
delivery.delivery_auto_trigger	Bool	Auto-trigger delivery after discovery
delivery.delivery_storage_buffer_bytes	Number	Storage buffer size (bytes)
delivery.use_only_artifacts_size_for_storage_calculation	Bool	Artifact size calculation mode
delivery.max_parallel_deliveries	Number	Maximum parallel downloads
delivery.delivery_timeout_mins	Number	Delivery timeout (minutes)
delivery.delivery_retry_count	Number	Number of delivery retries

Deploy Settings

Key	Type	Description
deploy.deploy_auto_on_pull	Bool	Auto-deploy after pull
deploy.deploy_timeout_sec	Number	Deploy timeout (seconds)

Release Health Check Settings

Key	Type	Description
releases.health_check_timeout_secs	Number	Health check timeout (seconds)
releases.health_check_interval_mins	Number	Health check interval (minutes)

General & Logging Settings

Key	Type	Description
general.query_status_interval_sec	Number	Status polling interval (seconds)
logs.logs_run_dispatch_job	Bool	Enable log dispatch job

Analytics (Matomo) Settings

Key	Type	Description
matomo.matomo_use_buffer	Bool	Buffer analytics events
matomo.matomo_server_url	String	Matomo server URL
matomo.matomo_site_id	Number	Matomo site ID
matomo.matomo_dimension_id	Number	Matomo dimension ID
matomo.matomo_max_retention_hours	Number	Matomo retention period (hours)
matomo.matomo_max_buffer_size_mb	Number	Matomo buffer size (MB)

Hot-Reload Behavior

After merging getapp_config values, the agent hot-reloads affected subsystems:

• Network/Delivery changes — refresh the HTTP client pool immediately
• Discovery changes — reset the discovery scheduler interval
• Other settings — picked up automatically on the next loop iteration

Example

A getapp_config group with the following YAML content:

discovery:
  periodic_interval_min: 10
delivery:
  max_parallel_deliveries: 3
  delivery_auto_trigger: true
network:
  net_tcp_stream_timeout_sec: 30

This would configure all devices receiving this config to:

• Run discovery every 10 minutes
• Allow up to 3 parallel deliveries with auto-trigger enabled
• Set TCP stream timeout to 30 seconds

Configuration Sync

How Sync Works

1. During discovery, the agent compares its local config version with the server-advertised version
2. If a newer version is available, the agent downloads the updated configuration
3. The new config is cached locally and made available through the local API
4. If a getapp_config group exists, its values are merged into the agent's settings

Sync Triggers

• Automatic periodic discovery cycle
• Manual sync initiated from the Agent UI
• Device restart

Offline Behavior

Configuration is cached locally on the device. If the device loses connectivity:

• The last synced configuration remains available
• Local overrides continue to function
• The agent will sync the latest version once connectivity is restored

CDN Configuration Distribution

A CDN agent (also called a master node) can act as a local configuration server for managed devices (slave nodes). This enables configuration distribution in environments where managed devices don't have direct connectivity to the GetApp server.

How CDN Config Distribution Works

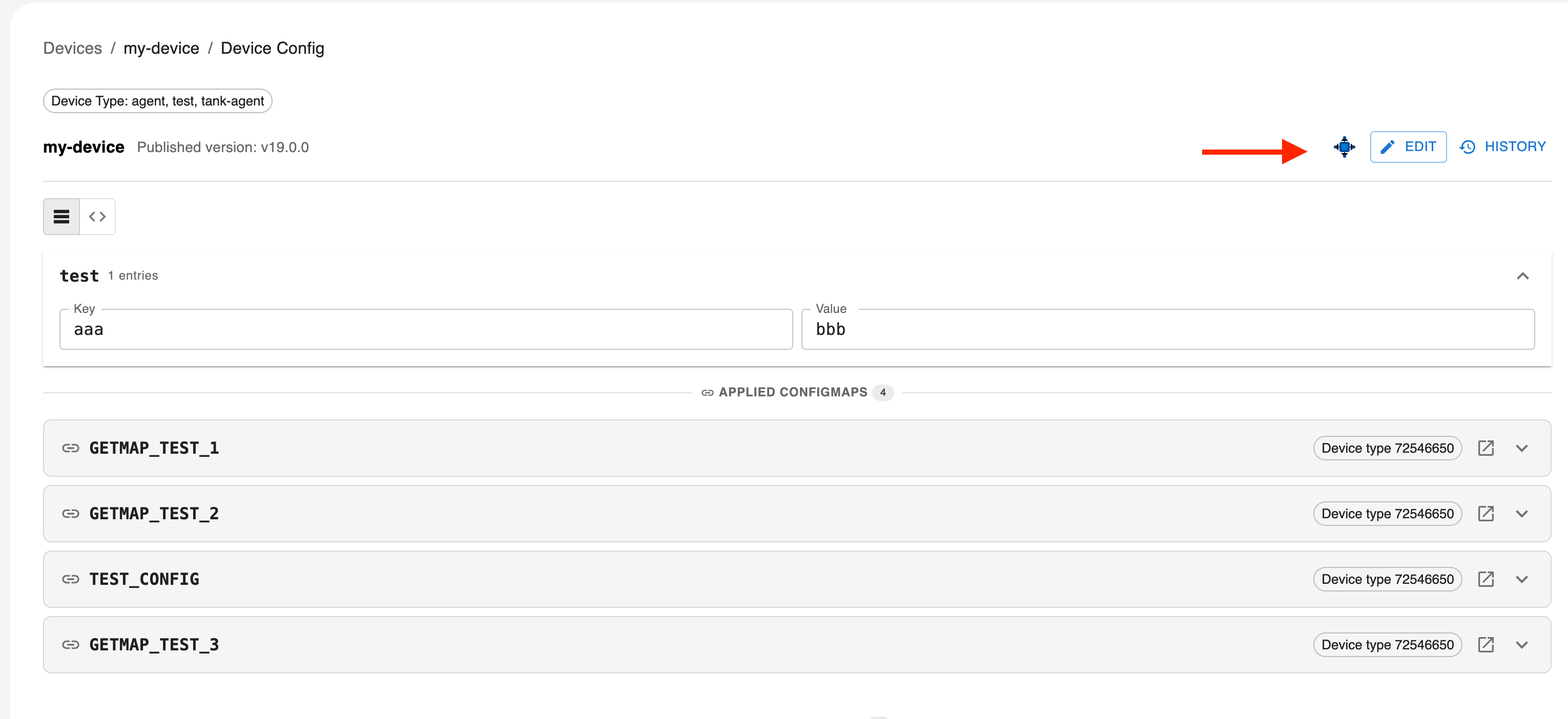

Distributing Config to CDN Agents

From the Server Dashboard, you can push a device's configuration to CDN agents so they can serve it to managed devices:

1. Navigate to the Devices list
2. Select the target device(s) or device group
3. Click Distribute
4. Select the config project(s) to distribute
5. Confirm the action

This creates an offering assignment in the server, which the CDN agent picks up during its next discovery cycle.

CDN Agent Config Sync Process

During discovery, the CDN agent receives two pieces of config-related information from the server:

1. latestConfigSemVer — the version of the CDN agent's own config
2. configDeviceIds — a list of config catalog IDs for all devices whose configs should be cached locally

The CDN agent then:

1. Syncs its own config — downloads and applies its self-config (including getapp_config if present)
2. Syncs managed device configs — for each device ID in the combined list (server-provided IDs + locally known managed devices), downloads the config from the server and caches it locally as devices-config/{device_id}.json

Serving Config to Managed Devices

Managed devices (slaves) connect to the CDN agent and request their configuration through the same endpoint used for direct server communication:

GET /api/v2/device/{deviceId}/config

The CDN agent serves the locally cached config with any applicable overrides applied. This means managed devices don't need to differentiate between connecting to a CDN agent or the server — the API is the same.

CDN Agent API Endpoints

The CDN agent exposes the following endpoints for managing CDN-specific configuration:

Method	Endpoint	Description
GET	/api/cdn/config	Get CDN settings (TTL, platform management)
PUT	/api/cdn/config	Update CDN settings
POST	/api/cdn/config/devices/sync	Trigger bulk config sync for specific device IDs
GET	/api/cdn/device	Get device data for CDN-connected devices
GET	/api/cdn/device/offering	Get per-device offering with metadata
POST	/api/cdn/devices/action	Dispatch actions to managed devices (Push, Discovery, etc.)
GET	/api/cdn/events/managed/{device_id}	SSE stream for managed device commands

Managed Device Connectivity

Managed devices maintain a connection to the CDN agent via Server-Sent Events (SSE):

GET /api/cdn/events/managed/{device_id}

The CDN agent tracks which managed devices are currently connected. This connectivity status is used to determine which devices are online and can receive pushed actions (e.g., triggering a discovery or delivery).

CDN Settings

CDN-specific settings are stored separately in cdn-config.yaml on the CDN agent. Key settings include:

Setting	Default	Description
inactive_device_hours	24	Hours before a device is considered inactive
device_delete_after_days	30	Days before an inactive device record is removed
platform_management	—	Platform-specific management configuration
cdn_node_id	—	Unique identifier for this CDN node

Best Practices

Configuration Organization

• Group by domain: Separate configuration into logical groups (e.g., network, security, application)
• Use meaningful names: Group and key names should be self-explanatory
• Keep groups focused: Each group should have a single responsibility

Security

• Mark sensitive values: Always mark passwords, tokens, and secrets as sensitive
• Limit access: Use role-based permissions to control who can modify configurations
• Audit changes: Review revision history regularly

Rollout Strategy

• Test before applying: Validate configuration changes on test devices first
• Use ConfigMaps for shared config: Avoid duplicating the same values across multiple projects
• Version awareness: Use semantic versioning to track meaningful changes

Local Overrides

• Use sparingly: Local overrides make central management harder
• Document overrides: Keep track of which devices have overrides and why
• Clean up: Remove overrides once the central config is updated

Troubleshooting

Configuration Not Syncing

1. Verify the revision is in ACTIVE status
2. Check that the device is connected and discovery is running
3. Confirm the config project is associated with the device (via offering)
4. Check agent logs for sync errors

Sensitive Values Not Resolving

1. Verify Vault connectivity from the server
2. Check that the keys are correctly marked as sensitive
3. Review Upload service logs for Vault errors

ConfigMap Changes Not Propagating

1. Ensure the ConfigMap revision has been applied
2. Verify associations are correctly configured
3. Check that linked Config projects have active revisions

Next Steps

• Managing Policies — Control which devices receive specific releases
• Managing Restrictions — Define device-level installation rules
• GitOps Releases — Automate configuration via Git workflows
